Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 2.85 | inch |
| LCD type | a-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 480RGB x 480 | - |
| display area | Φ70.13 | Mother |

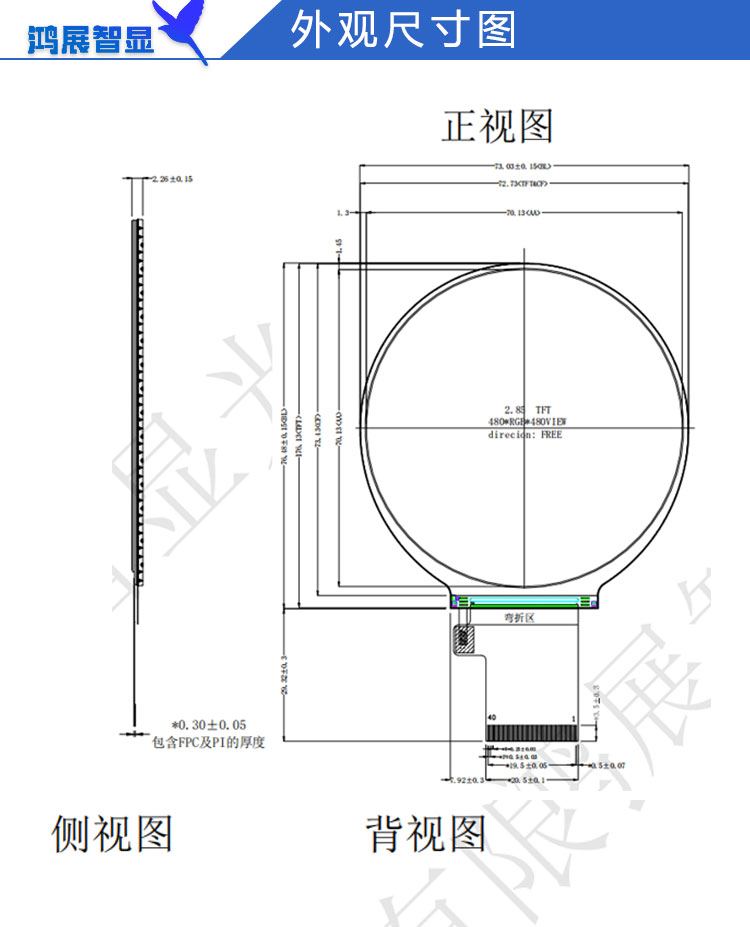

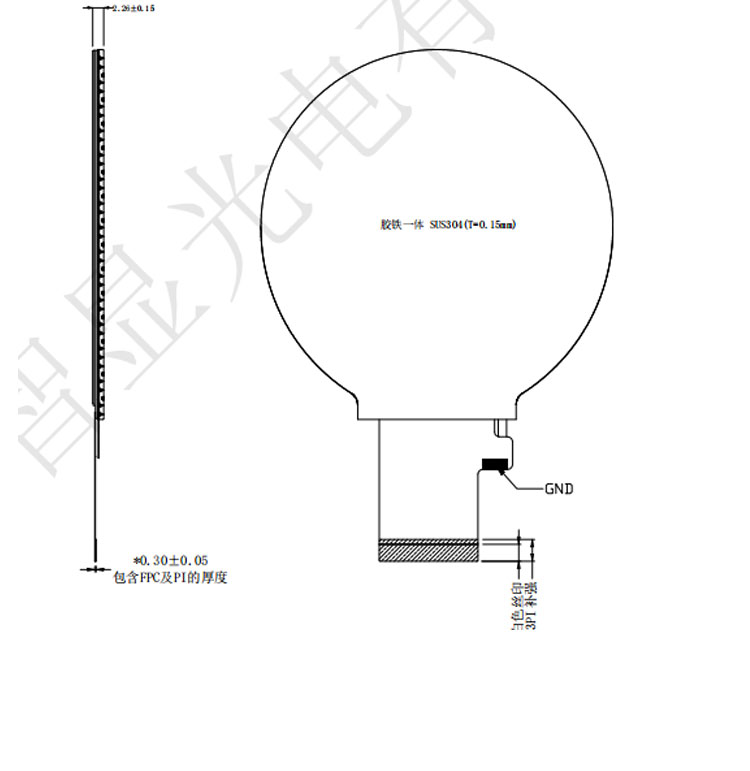

| Module appearance | 73.03(H) × 76.48(V) × 2.26(T) | Mother |
| Display color | 16.7M | - |
| interface | RGB+MIPI | - |
| Driver IC | ST7701S | - |
| TP window | none | Mother |
| TP shape | none | Mother |
| brightness | 450 | cd/m² |
| Viewing direction | All | - |
| Contrast | 1200:1 | - |
| Color gamut | 65 | % |
| PPI image point density | 173 | - |
| window effect | All black | - |
| cover surface effect | No AF/AG | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | - |
