Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 1.5 | inch |
| LCD type | α-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 360RGB x 360 | - |
| display area | Φ38.16 | Mother |

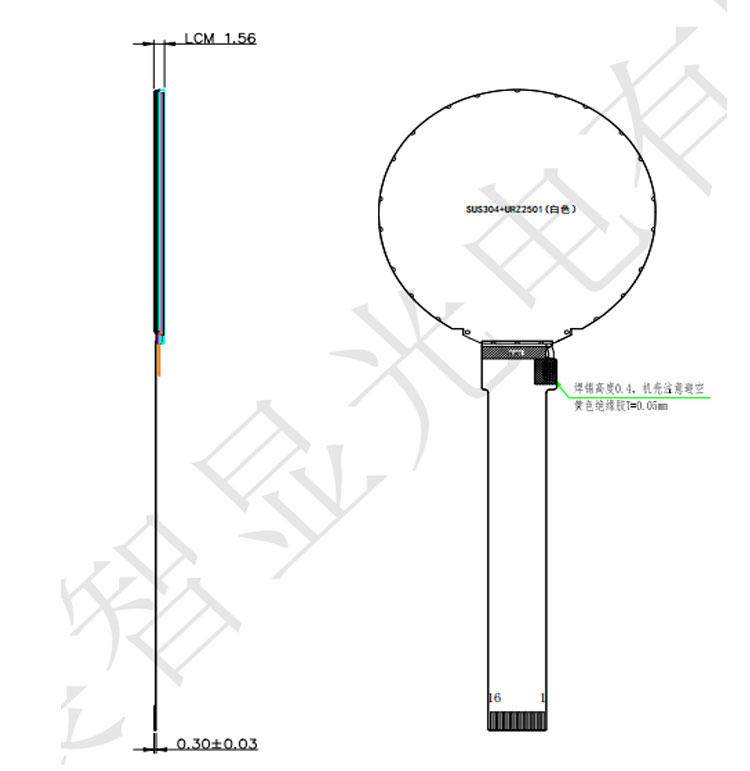

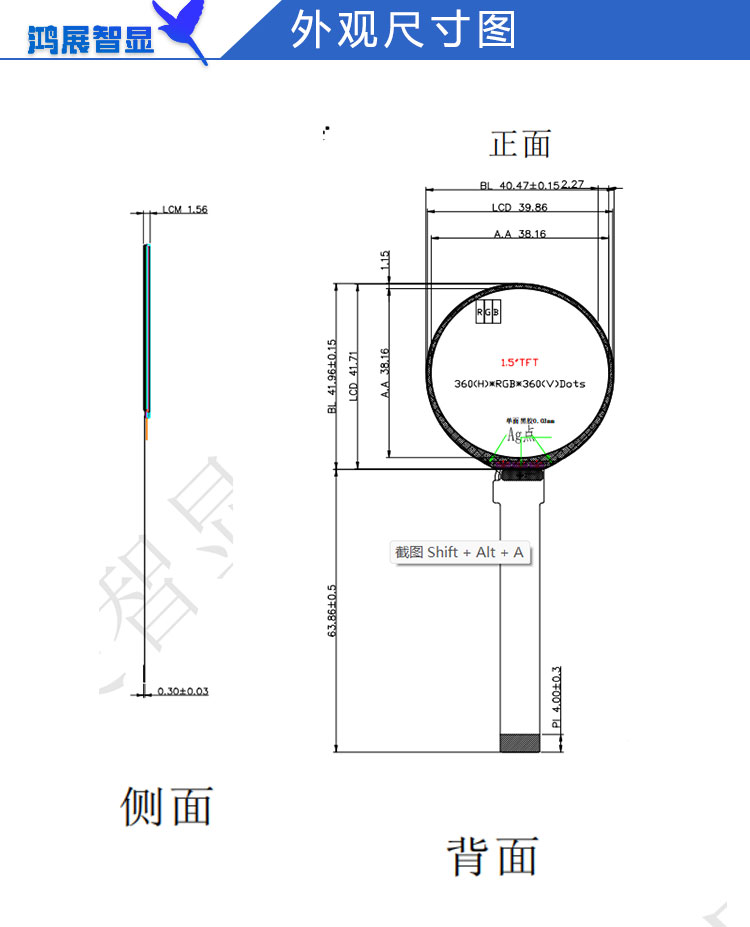

| Module appearance | 40.47(H) × 41.96(V) × 1.56(T) | Mother |
| Display color | 16.7M | - |
| interface | QSPI | - |
| Driver IC | ST77916 | - |
| TP window | - | Mother |
| TP shape | - | Mother |
| brightness | 400 | cd/m² |
| Viewing direction | All | - |
| Contrast | 1000:1 | - |
| Color gamut | 70 | % |
| PPI image point density | 239 | - |
| window effect | All black | - |
| cover surface effect | No AF/AG | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | - |
