Product parameters
| parameter | Details | unit |
| Display Size(Diagonal)Display size(diagonal) | 3.45 | inch |
| LCD typeLCD display type | α-Si TFT | - |
| Display ModeDisplay Mode | IPS/Transmissive/Normally Black | - |
| Resolution | 480RGBx640 | - |
| Active Area display area | 51.84(H)×69.12(V) | Mother |

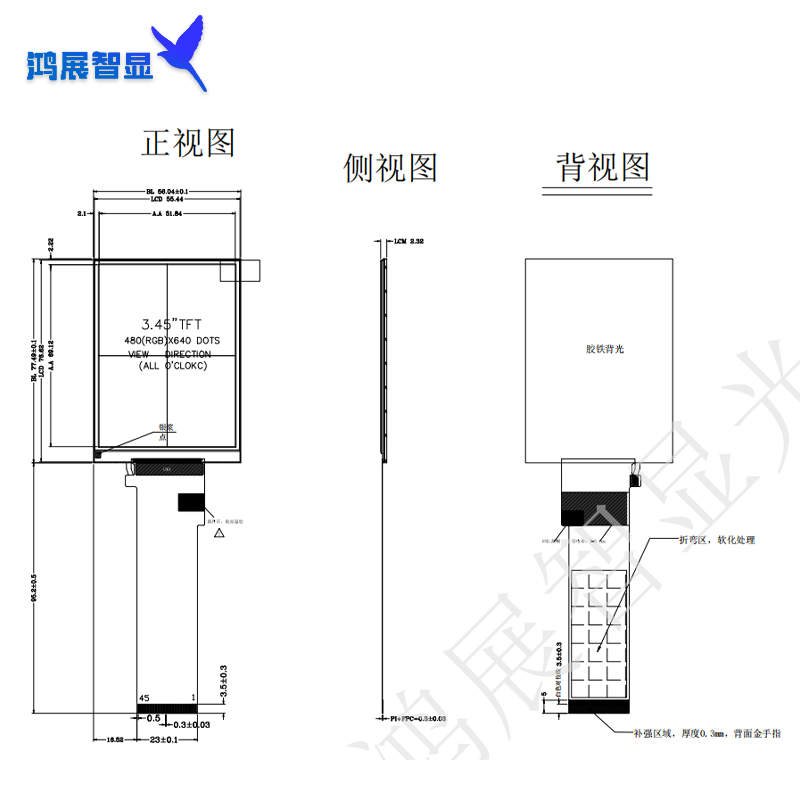

| Module Outline module appearance | 56.04(H)×77.49(V)×2.32(T) | Mother |
| Display ColorsDisplay Colors | 16.7M | |
| InterfaceInterface | 16BIT/RGB565 | |
| Driver ICDriver IC | ST7701 | - |
| TPViewing Area TPViewing Area | - | Mother |
| TPOutline(assembly)TP outline | - | Mother |
| Luminance on surfaceBrightness | 450 | cd/m² |
| View DirectionView direction | ALL | Best image |
| Contrast ratioContrast ratio | 800:1 | |
| Color gamut color gamut | 69.5% | |
| PPI image point density | 235 | |
| Windoweffect window effect | All black | - |
| Cover plate surface effect cover plate surface effect | No AF/AG | - |
| Operating TemperatureOperating temperature | -20～70 | ℃ |
| Storage TemperatureStorage temperature | -30～80 | ℃ |
| Weight | TBD | indivual |
