Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 3.54 | inch |
| LCD type | a-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 640RGB x 960 | - |
| display area | 49.92(H) × 74.88(V) | Mother |

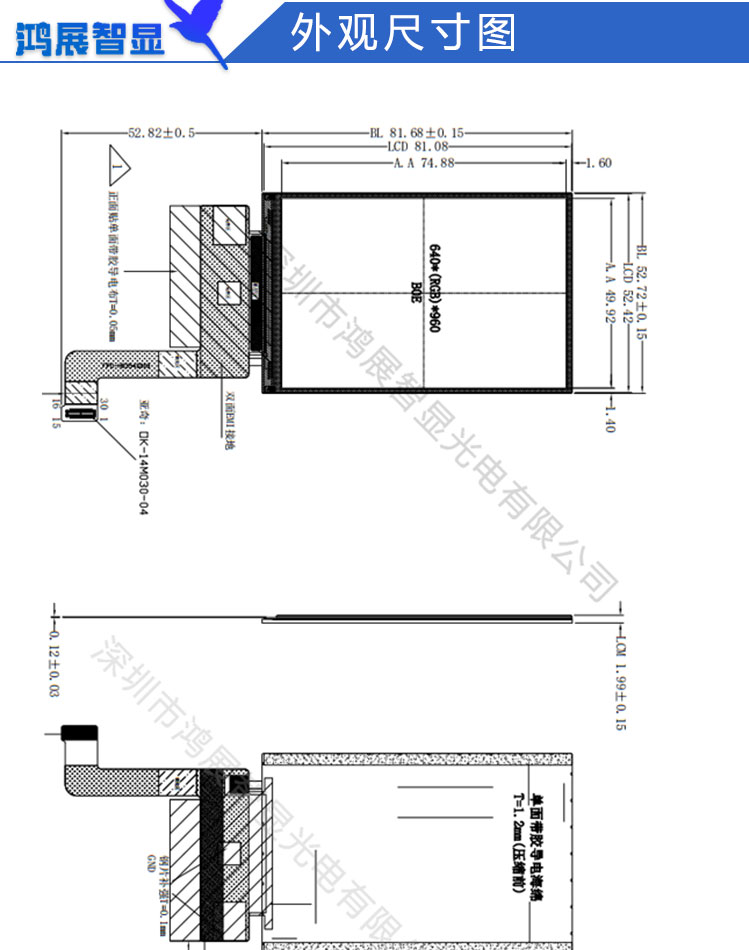

| Module appearance | 52.72(H) × 81.68(V) × 1.53(T) | Mother |
| Display color | 16.7M | - |
| interface | MIPI | - |
| Driver IC | 7703 | - |
| TP window | 50.32(H) × 75.28(V) | Mother |
| TP shape | 57.05(H) × 95.15(V) × 0.7(T) | Mother |
| brightness | 550 | cd/m² |
| Viewing direction | All | - |
| Contrast | 1000:1 | - |
| Color gamut | 70 | % |
| PPI image point density | 325 | - |
| window effect | All black | - |
| cover surface effect | AF | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | indivual |
| connector | OK-10GM030-04 | - |
