Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 3.1 | inch |
| LCD type | a-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 480RGB x 800 | - |
| display area | 40.32(H) × 67.2(V) | Mother |

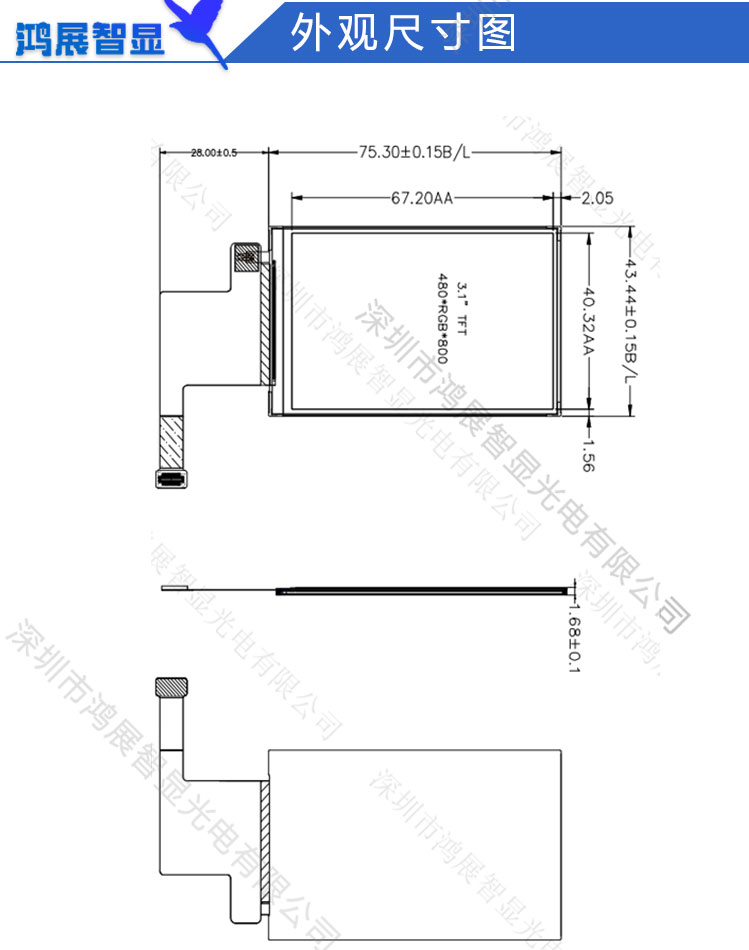

| Module appearance | 43.48(H) × 74.72(V) × 1.6(T) | Mother |
| Display color | 16.7M | - |
| interface | MIPI | - |
| Driver IC | ST7701 | - |
| TP window | 40.92(H) × 72.9(V) | Mother |
| TP shape | 48.03(H) × 80.61(V) × 0.975(T) | Mother |
| brightness | 450 | cd/m² |
| Viewing direction | All | - |
| Contrast | 1000:1 | - |
| Color gamut | 71.5 | % |
| PPI image point density | 302 | - |
| window effect | All black | - |
| cover surface effect | 无 AF/AG | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30 ~ 80 | ℃ |
| weight | TBD | indivual |
