Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 2.4 | inch |
| LCD type | α-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 480RGBx640 | - |
| display area | 36.72(H) × 48.96(V) | Mother |

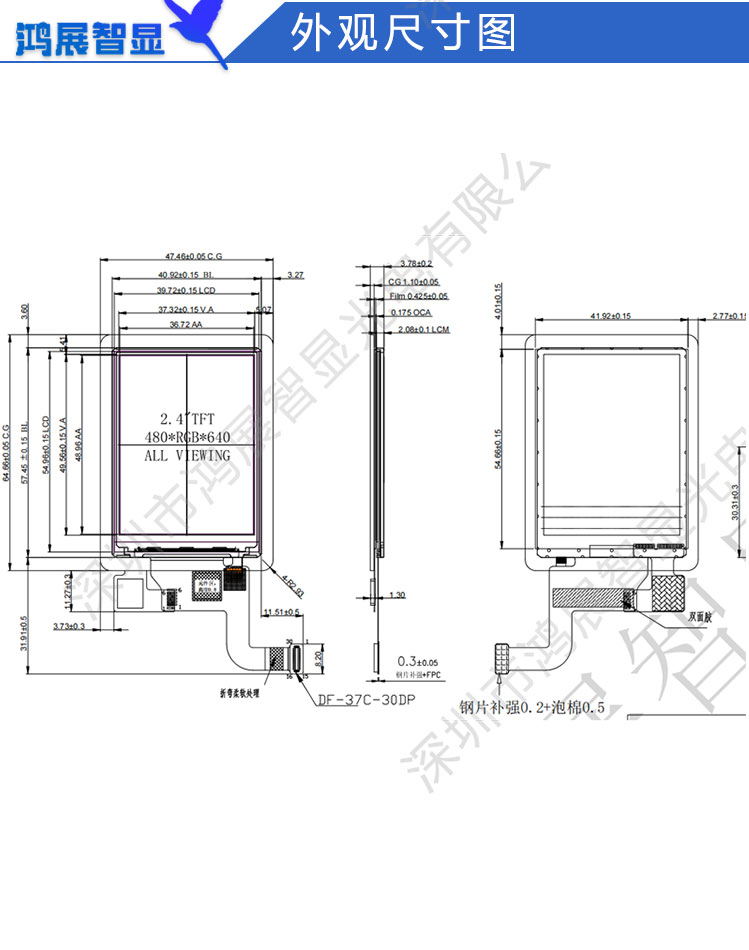

| Module appearance | 40.92(H) × 57.45(V) × 2.08(T) | Mother |
| Display color | 16.7M | - |
| interface | MIPI | - |
| Driver IC | ST7701S | - |
| TP window | 37.32(H) × 57.45(V) | Mother |
| TP shape | 47.46(H) × 64.66(V) × 1.1(T) | Mother |
| brightness | 450 | cd/m² |
| Viewing direction | All | - |
| Contrast | 1000:1 | - |
| Color gamut | 63 | % |
| PPI image point density | 332 | - |
| window effect | All black | - |
| cover surface effect | No AF/AG | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | indivual |
