Product parameters
| Details | parameter | unit |
| Display Size(Diagonal)Display size(diagonal) | 2.3 | inch |
| LCD typeLCD display type | α-SiTFT | |
| Display ModeDisplay Mode | IPS/Transmissive/Normally Black | |
| Resolution | 480RGBx720 | - |
| Active Area display area | 31.968(H)×49.896(V) | Mother |

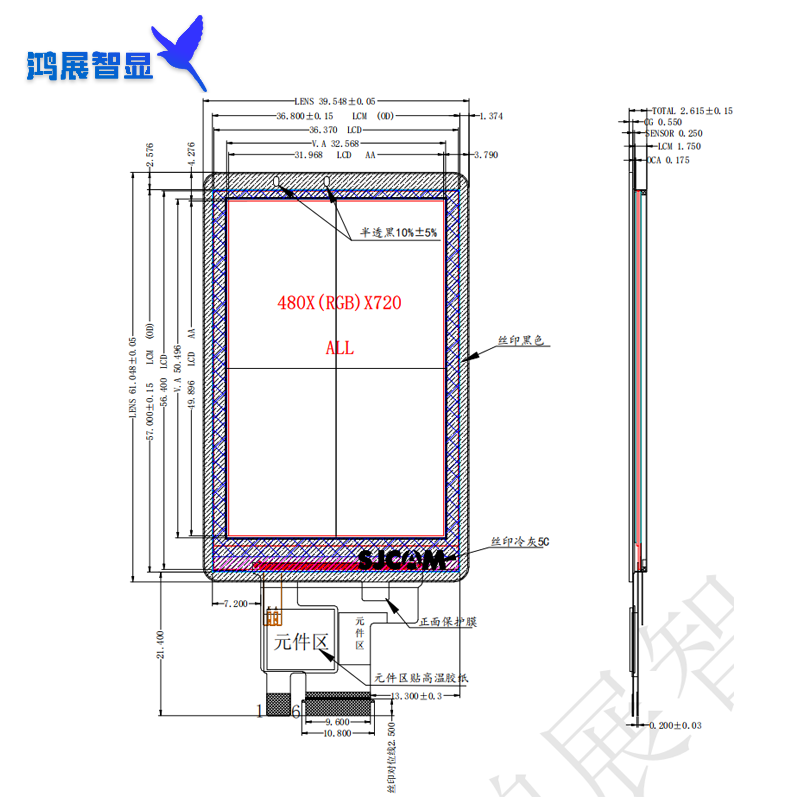

| Module Outline module appearance | 36.8(H)×57(V)×1.75(T) | Mother |
| Display ColorsDisplay Colors | 262K | |
| InterfaceInterface | RGB | |
| Driver ICDriver IC | ILI9806E | |
| TPViewing Area TPViewing Area | 32.568(H)×50.496(V) | Mother |
| TPOutline(assembly)TP outline | 39.548(H)×61.048(V)×0.8(T) | Mother |
| Luminance on surfaceBrightness | 400 | cd/m² |
| View DirectionView direction | All | Best image |
| Contrast ratioContrast ratio | 1200:1 | |
| Color gamut color gamut | 70% | |
| PPI image point density | 366 | |
| Windoweffect window effect | All black | |
| Cover plate surface effect cover plate surface effect | No AF/AG | |
| Operating TemperatureOperating temperature | -20～70 | ℃ |
| Storage TemperatureStorage temperature | -30～80 | ℃ |
| Weight | TBD | indivual |
