Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 1.98 | inch |
| LCD type | a-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 252RGB x 480 | - |
| display area | 23.436(H) × 44.640(V) | Mother |

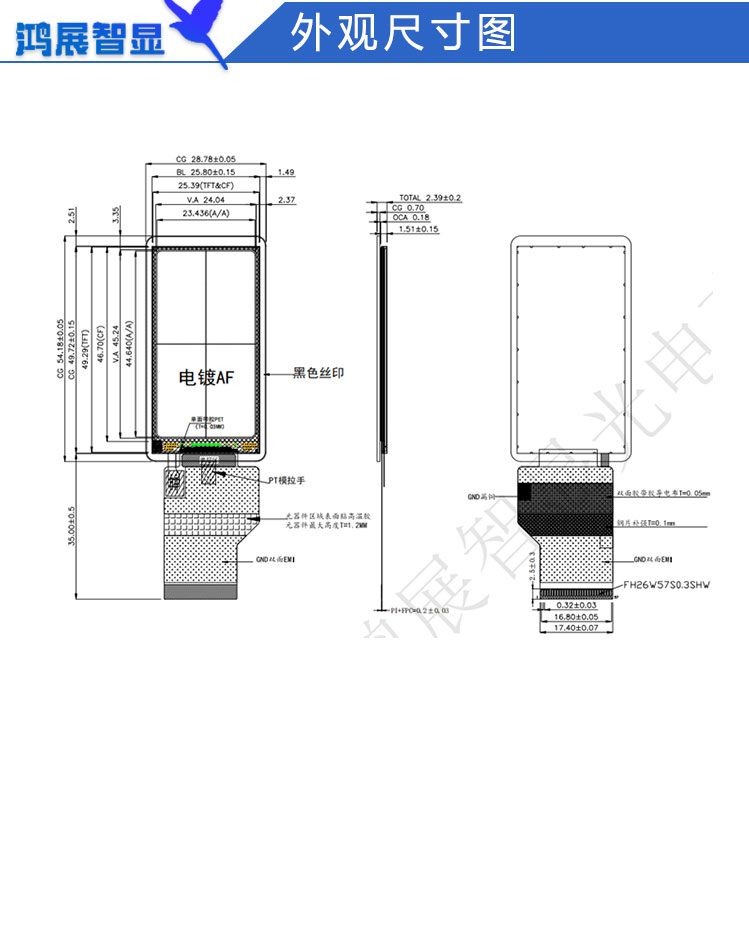

| Module appearance | 25.80(H) × 49.72(V) × 1.51(T) | Mother |
| Display color | Atak | - |
| interface | MIPI/18BIT/QSPI/SPI | - |
| Driver IC | 15231 | - |
| TP window | 24.04(H) × 45.24(V) | Mother |
| TP shape | 28.78(H) × 54.18(V) × 0.7(T) | Mother |
| brightness | 500 | cd/m² |
| Viewing direction | All | - |
| Contrast | 1200:1 | - |
| Color gamut | 65 | % |
| PPI image point density | 273 | - |
| window effect | All black | - |
| cover surface effect | Plated AF | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | indivual |
