Product parameters
| parameter | Details | unit | |
| Display Size(Diagonal)Display size(diagonal) | 5.0 | inch | |
| LCD typeLCD display type | α-Si TFT | - | |
| Display ModeDisplay Mode | IPS/Transmissive/Normally Black | - |
|
| Resolution | 800RGBx480 | - | |
| Active Area display area | 107(H)×63.8(V) | Mother | |

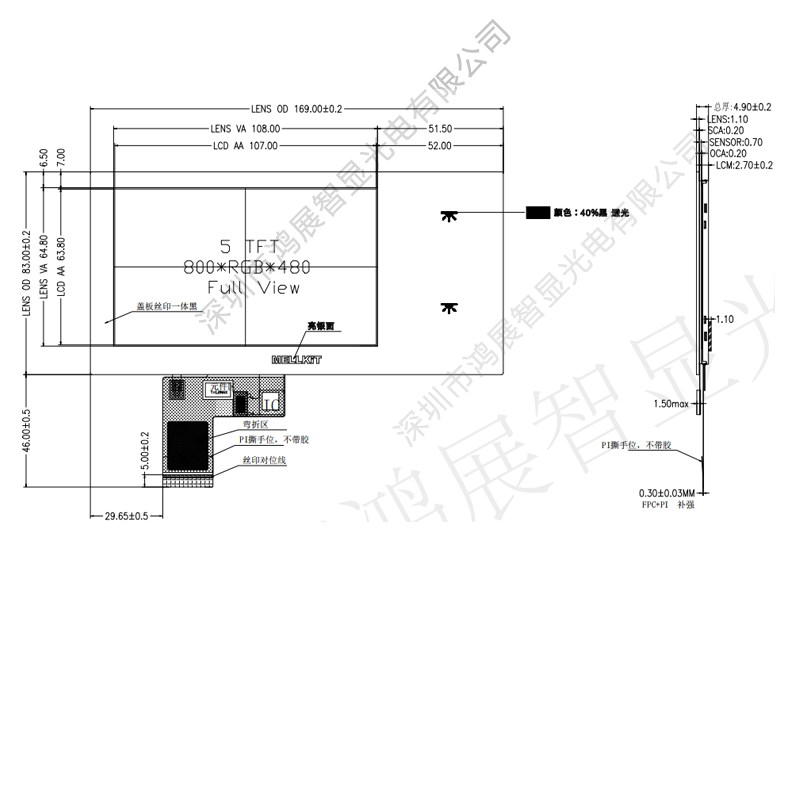

| Module Outline module appearance | 120.2(H)×75.3(V×2.7(T) | Mother | |
| Display ColorsDisplay Colors | 16.7M | - | |
| InterfaceInterface | RGB | - | |
| Driver ICDriver IC | ST7262 | - |
|
| TP Viewing Area TP Window | 108(H)×64.8(V) | Mother | |
| TP Outline(assembly)TP outline | 169(H)×83(V)×4.9(T) | Mother | |
| Luminance on surfaceBrightness | 450 | cd/m² | |
| View DirectionView direction | All | Best image | |
| Contrast ratioContrast ratio | 1000:1 | ||
| Color gamut color gamut | 50% | ||
| PPI image point density | 188 | - | |
| Window effect Window effect | All black | - | |
| Cover plate surface effect cover plate surface effect | None A F /AG | - | |
| Operating TemperatureOperating temperature | -20～70 | ℃ | |
| Storage TemperatureStorage temperature | -30～80 | ℃ | |
| Weight | TBD | indivual | |
