Product parameters
| parameter | Details | unit |
| Display Size(Diagonal)Display size(diagonal) | 2.0 | inch |
| LCD typeLCD display type | α-Si TFT | - |
| Display ModeDisplay Mode | IPS/Transmissive/Normally Black | - |
| Resolution | 480RGBx360 | - |
| Active Area display area | 40.82(H)×.30.62(V) | Mother |

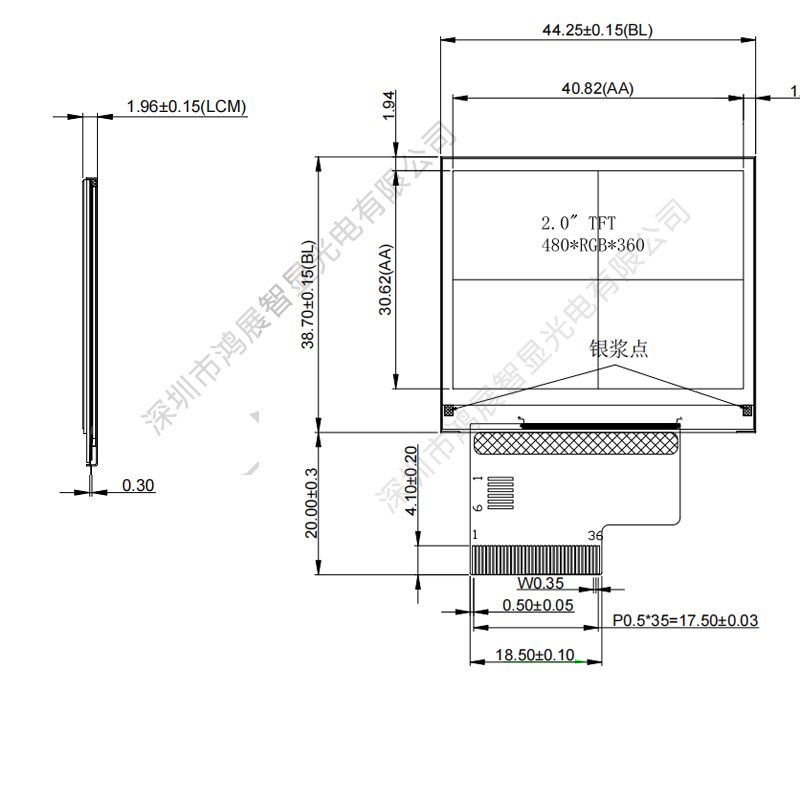

| Module Outline module appearance | 44.25(H)×38.7(V)×1.96(T) | Mother |
| Display ColorsDisplay Colors | 16.7M | |
| InterfaceInterface | MIPI | - |
| Driver ICDriver IC | ST7701S | - |
| TP Viewing Area TP Window | none | Mother |
| TPOutline(assembly)TP outline | none | Mother |
| Luminance on surfaceBrightness | 250 | cd/m² |
| View DirectionView direction | All | Best image |
| Contrast ratioContrast ratio | 800:1 | |
| Color gamut color gamut | 60% | |
| PPI image sampling rate | 298 | one |
| Window effect Window effect | All black | - |
| Cover plate surface effect cover plate surface effect | No AF/AG | - |
| Operating TemperatureOperating temperature | -20～60 | ℃ |
| Storage Temperature storage temperature |
-30～70 | ℃ |
| Weight | TBD | indivual |
