Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 2.64 | inch |
| LCD type | a-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 480RGB x 480 | - |
| display area | 43.2(H) × 43.2(V) | Mother |

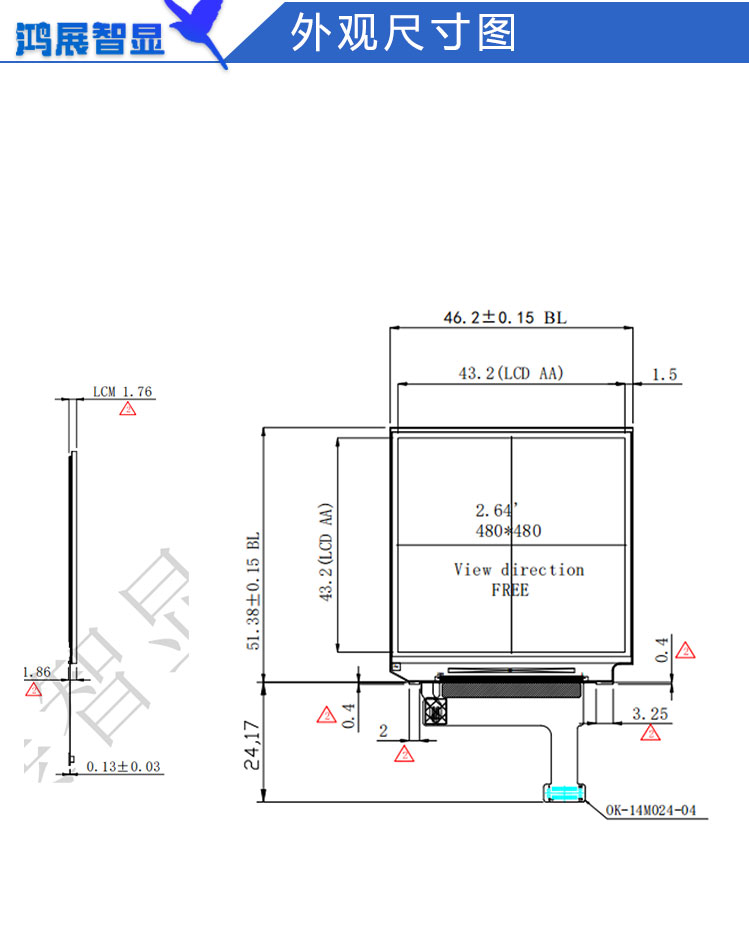

| Module appearance | 46.2(H) × 51.38(V) × 1.76(T) | Mother |
| Display color | 16.7M | - |
| interface | MIPI | - |
| Driver IC | ST7701 | - |
| TP window | - | Mother |
| TP shape | - | Mother |
| brightness | 400 | cd/m² |
| Viewing direction | All | - |
| Contrast | 1500:1 | - |
| Color gamut | 71 | % |
| PPI image point density | 282 | - |
| window effect | All black | - |
| cover surface effect | No AF | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | indivual |
