Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 2.09 | inch |
| LCD type | α-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 320RGB x 375 | - |
| display area | 34.18(H) × 40.05(V) | Mother |

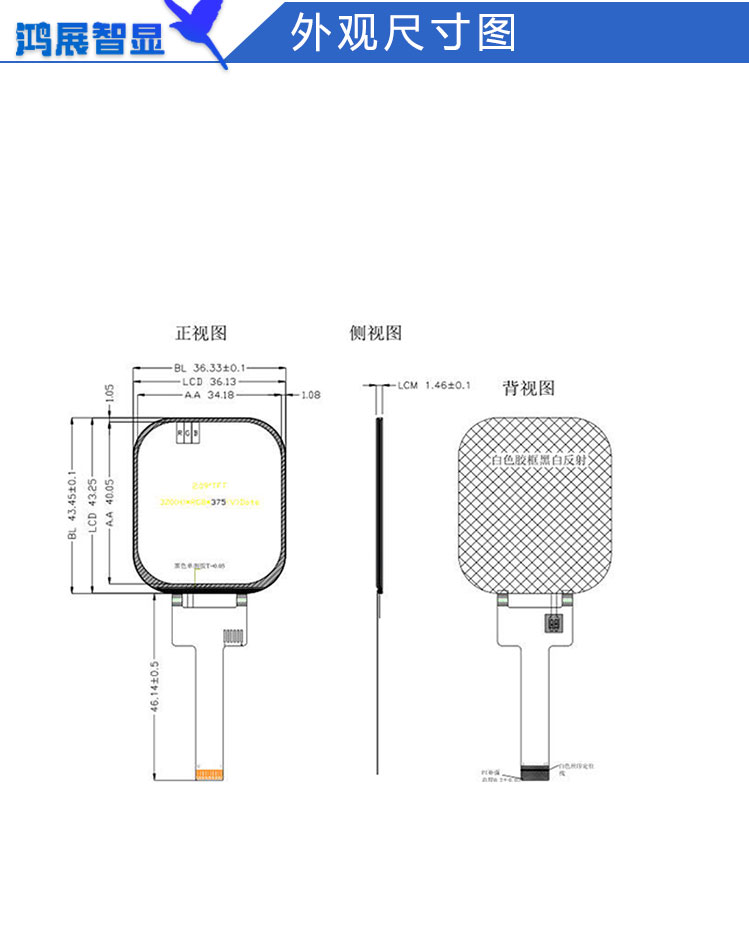

| Module appearance | 36.33(H) × 43.45(V) × 1.46(T) | Mother |
| Display color | 262K | - |
| interface | QSPI | - |
| Driver IC | 9855B | - |
| TP window | - | Mother |
| TP shape | - | Mother |
| brightness | 500 | cd/m² |
| Viewing direction | All Best images | - |
| Contrast | 1000:1 | - |
| Color gamut | 70 | % |
| PPI image point density | 233 | - |
| window effect | none | - |
| cover surface effect | none | - |
| working temperature | -20~60 | ℃ |
| storage temperature | -30~70 | ℃ |
| weight | TBD | indivual |
| connector | OK-F302-21115 | - |
