Product parameters
| Details | parameter | unit |
| Display Size(Diagonal)Display size(diagonal) | 1.83 | inch |
| LCD typeLCD display type | α-Si TFT | |
| Display ModeDisplay Mode | IPS/Transmissive/Normally Black | |
| Resolution | 240RGBx280 | · |
| Active Area display area | 30.24(H)×35.28(V) | Mother |

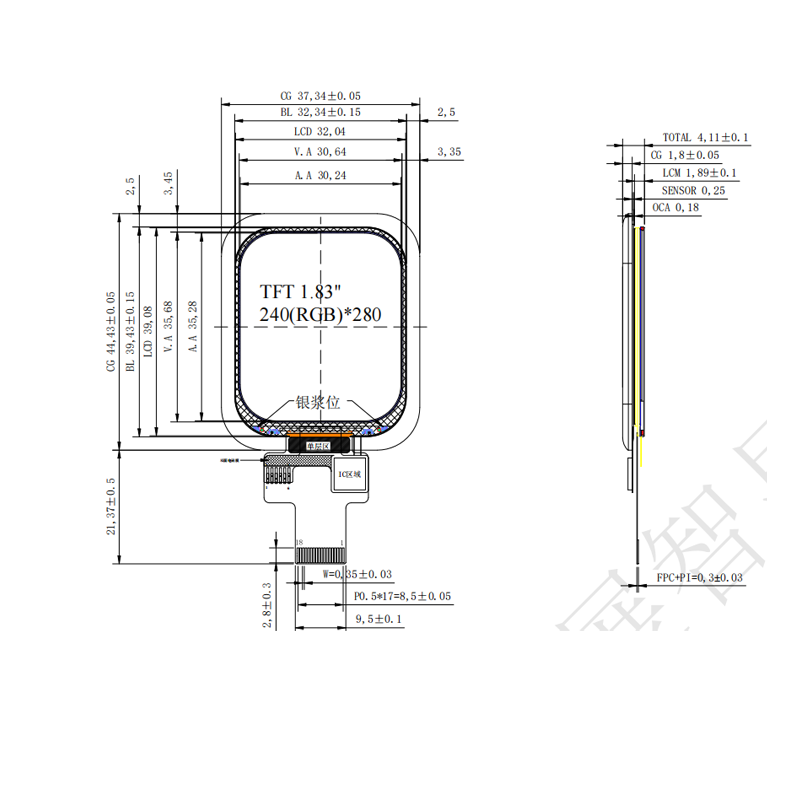

| Module Outline module appearance | 32.34(H)×39.43(V)×1.9(T) | Mother |
| Display ColorsDisplay Colors | 262K | · |
| InterfaceInterface | SPI | |
| Driver ICDriver IC | ST7789P3-G6 | · |
| TPViewing Area TPViewing Area | 30.74(H)×48.36(V) | Mother |
| TPOutline(assembly)TP outline | 43.4(CH)×67.8(V)×0.95(T) | Mother |
| Luminance on surfaceBrightness | 400 | cd/m² |
| View DirectionView direction | All | Best image |
| Contrast ratioContrast ratio | 1200:1 | |
| Color gamut color gamut | 72% | |
| PPI image point density | 201 | · |
| Window effect Window effect | All black | |
| Cover plate surface effect cover plate surface effect | No AF/AG | |
| Operating TemperatureOperating temperature | -20～70 | ℃ |
| Storage TemperatureStorage temperature | -30～80 | C |
| Weight | TBD | indivual |
