Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 1.72 | inch |
| LCD type | a-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 356RGB x 400 | - |
| display area | 29.1(H) × 32.7(V) | Mother |

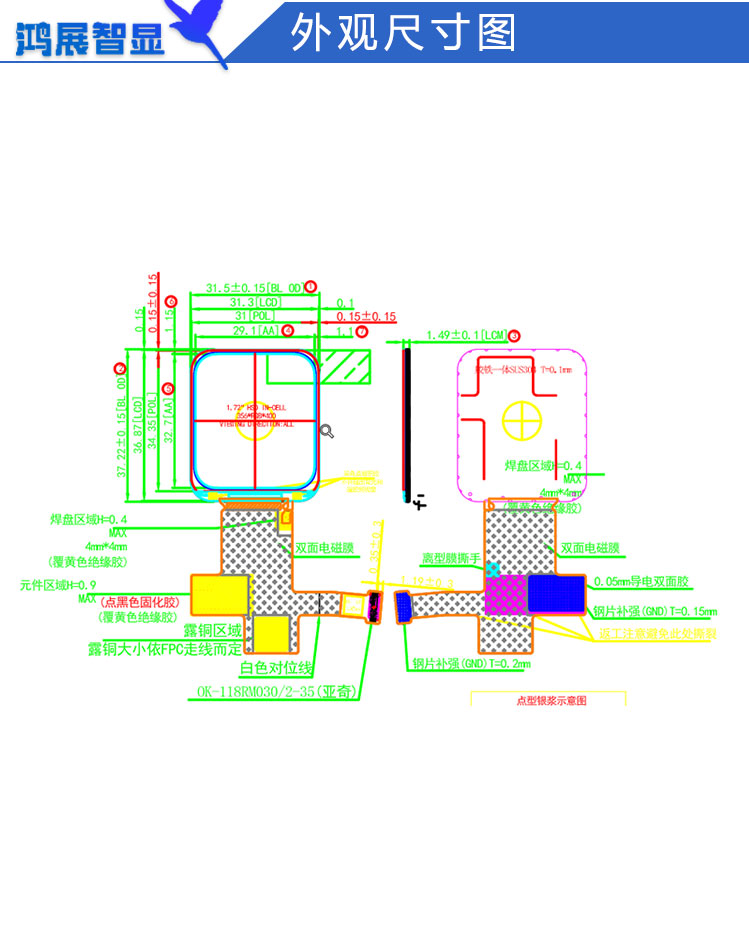

| Module appearance | 31.5(H) × 37.22(V) × 1.56(T) | Mother |
| Display color | 16.7M | - |
| interface | MIPI | - |
| Driver IC | SPD2012 | - |
| TP window | 29.5(H) × 33.1(V) | Mother |
| TP shape | 40.18(H) × 50.94(V) × 2.44(T) | Mother |
| brightness | 500 | cd/m² |
| Viewing direction | All | - |
| Contrast | 1500:1 | - |
| Color gamut | 70 | % |
| PPI image point density | 310 | - |
| window effect | All black | - |
| cover surface effect | No AF/AG | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | indivual |
