Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 1.54 | inch |
| LCD type | α-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 240RGB x 240 | - |
| display area | 27.72(H) × 27.72(V) | Mother |

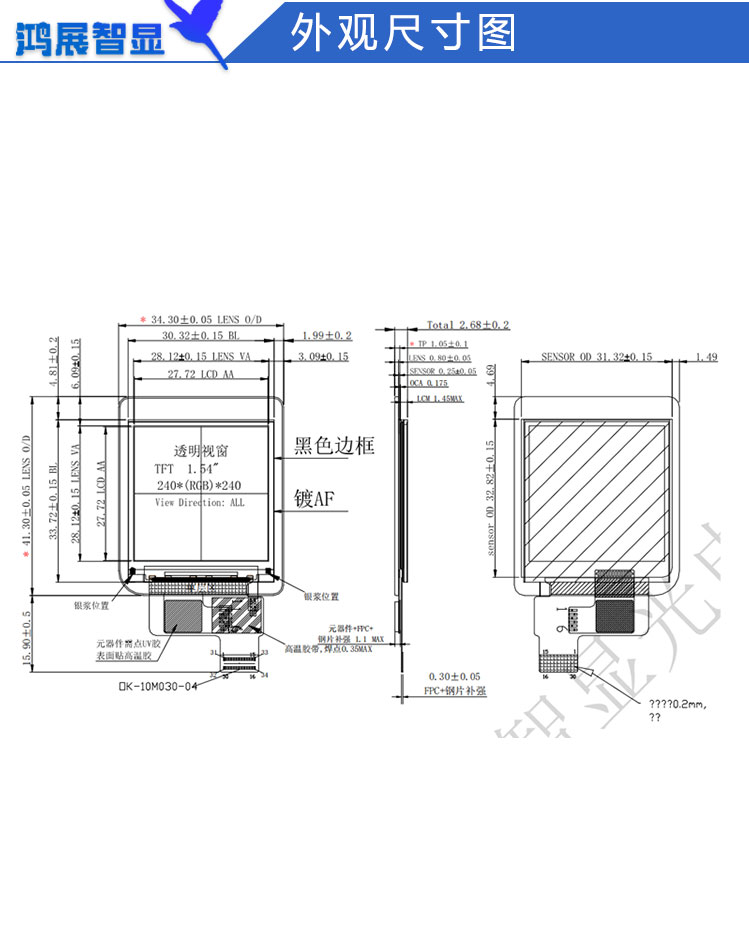

| Module appearance | 30.32(H) × 33.72(V) × 1.45(T) | Mother |
| Display color | 262K | - |
| interface | 16BIT | - |
| Driver IC | GC9307 | - |
| TP window | 28.12(H) × 28.12(V) | Mother |
| TP shape | 34.3(H) × 41.3(V) × 2.68(T) | Mother |
| brightness | 450 | cd/m² |
| Viewing direction | All | - |
| Contrast | 900:1 | - |
| Color gamut | 50 | % |
| PPI image point density | - | - |
| window effect | All black | - |
| cover surface effect | Plated AF | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | indivual |
