Product parameters
| Details | parameter | unit |
| Display Size(Diagonal)Display size(diagonal) | 8.88 | inch |
| LCD typeLCD display type | α-Si TFT | |
| Display ModeDisplay Mode | IPS/Transmissive/Normally Black | |
| Resolution | 480RGBx1920 | |
| Active Area display area | 54.72(H)×218.88(V) | Mother |

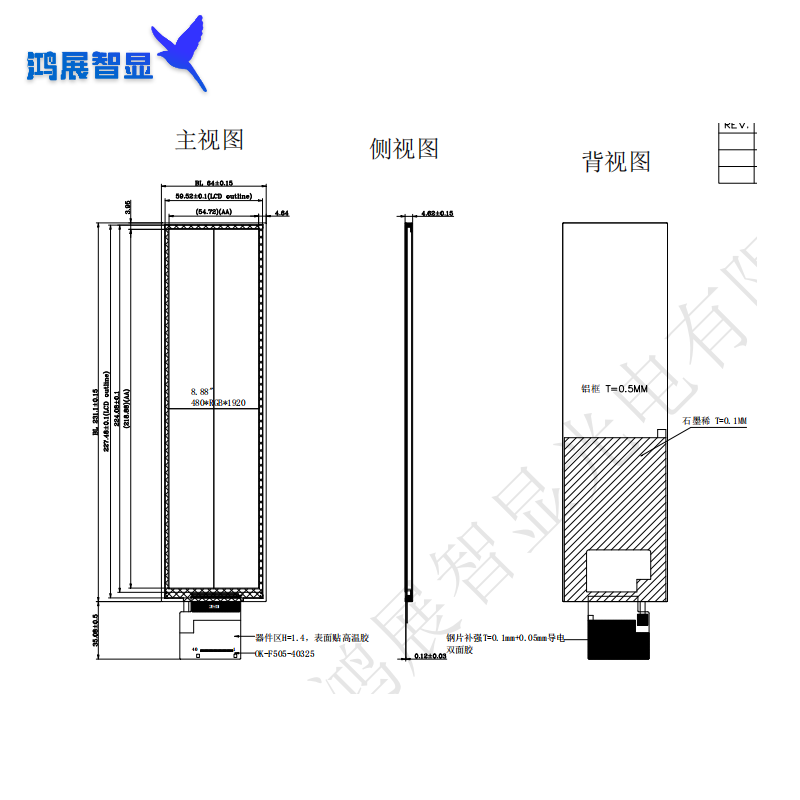

| Module Outline module appearance | 64.00(H)×231.10(V)×4.62(T) | Mother |
| Display ColorsDisplay Colors | 16.7M | |
| InterfaceInterface | MIPI | |
| Driver ICDriver IC | 7290 | |
| TPViewing Area TPViewing Area | Mother | |
| TPOutline(assembly)TP outline | sky | Mother |
| Luminance on surfaceBrightness | 1100 | cd/m² |
| View DirectionView direction | All | Best image |
| Contrast ratioContrast ratio | 800:1 | |
| Color gamut color gamut | 50% | |
| PPI image point density | 222 | |
| Window effect Window effect | All black | |
| Cover plate surface effect cover plate surface effect | No AF/AG | |
| Operating TemperatureOperating temperature | -20～70 | ℃ |
| Storage TemperatureStorage temperature | -30～80 | ℃ |
| Weight | TBD | indivual |
