Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 3.49 | inch |
| LCD type | a-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 172RGBx640 | - |
| display area | 22.575(H) × 84(V) | Mother |

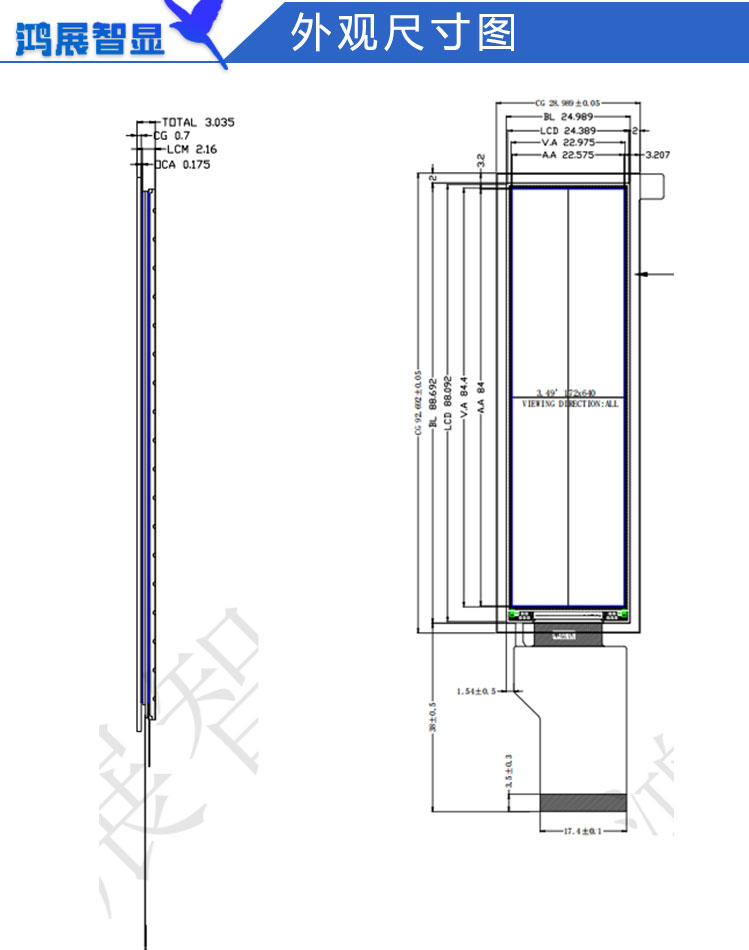

| Module appearance | 24.989(H) × 88.692(V) × 2.16(T) | Mother |
| Display color | 16.7M | - |
| interface | QSPI/MIPI/RGB/MCU/SPI | - |
| Driver IC | AXS15231B | - |
| TP window | 22.975(H) × 84.4(V) | Mother |
| TP shape | 28.989(H) × 92.692(V) × 0.7(T) | Mother |
| brightness | 350 | cd/m² |
| Viewing direction | All | - |
| Contrast | 1200:1 | - |
| Color gamut | 70 | % |
| PPI image point density | 193 | - |
| window effect | All black | - |
| cover surface effect | No AF/AG | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | indivual |
| Matching connector | FH26W57S0.3SHW | - |
