Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 2.33 | inch |
| LCD type | a-Si TFT | - |
| display mode | IPS / Transmissive / Normally Black | - |
| resolution | 222RGB x 480 | - |

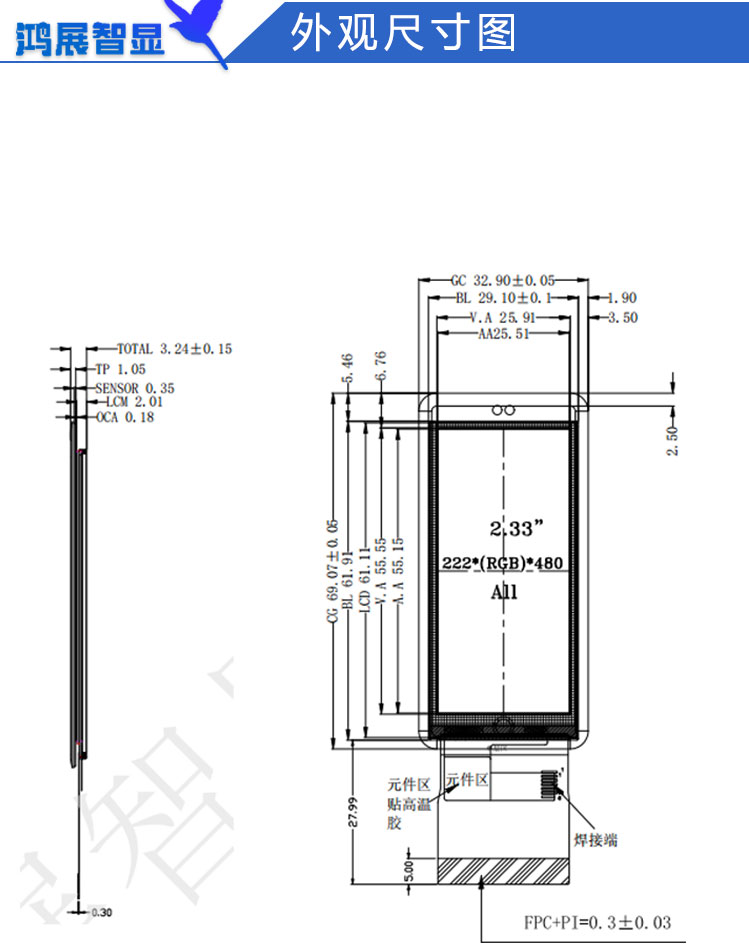

| display area | 25.51(H) × 55.15(V) | Mother |
| Module appearance | 29.1(H) × 61.91(V) × 2.01(T) | Mother |
| Display color | 262K | - |
| interface | MIPI/18RGB/18BIT/4SPI | - |
| Driver IC | ST7796 | - |
| TP window | 25.91(H) × 55.55(V) | Mother |
| TP shape | 32.9(H) × 69.07(V) × 1.05(T) | Mother |
| TP IC | CST226SE | - |
| brightness | 650 | cd/m² |
| Viewing direction | All | - |
| Contrast | 1000:1 | - |
| Color gamut | 70 | % |
| PPI image point density | 221 | - |
| window effect | All black | - |
| cover surface effect | No AF/AG | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | - |
