Product parameters
| parameter | Details | unit |
| Display Size(Diagonal)Display size(diagonal) | 1.6 | inch |
| LCD typeLCD display type | α-Si TFT | |
| Display ModeDisplay Mode | IPS/Transmissive/Normally Black | - |
| Resolution | 200RGBx320 | |

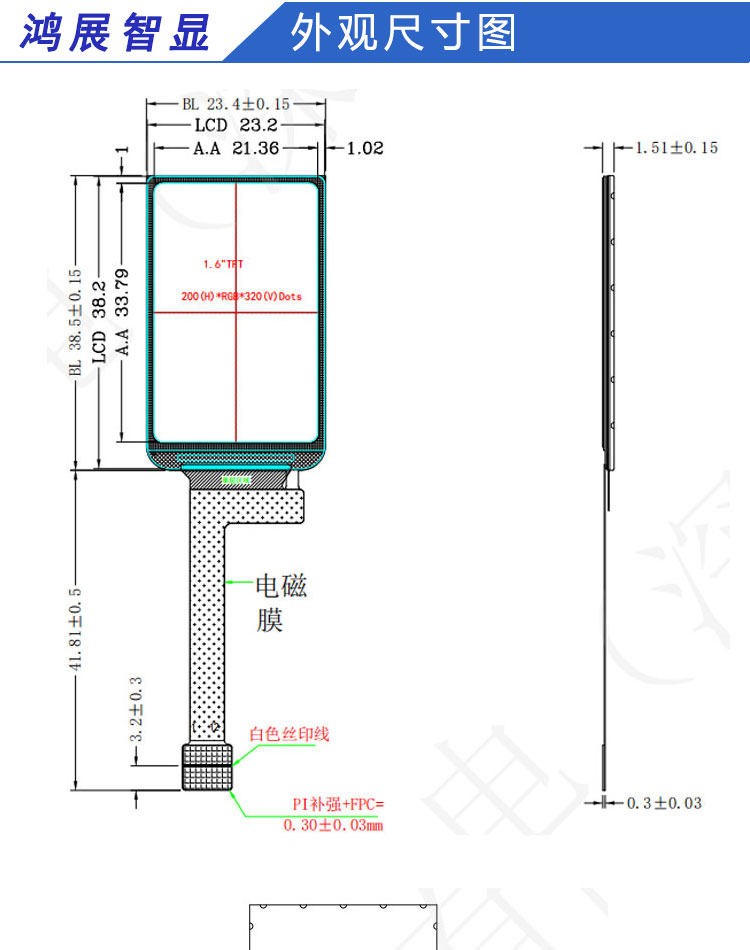

| Active Area display area | 21.36(H)×33.79(V) | Mother |
| Module Outline module appearance | 23.4(H)×38.5(V)×1.51(T) | Mother |
| Display ColorsDisplay Colors | 262K | |
| InterfaceInterface | 4SPI | |
| Driver ICDriver IC | ST7789 | - |
| TP Viewing Area TP Window | - | Mother |
| TPOutline(assembly)TP outline | - | Mother |
| Luminance on surfaceBrightness | 400 | cd/m² |
| View DirectionView direction | All | Best image |
| Contrast ratioContrast ratio | 800:1 | |
| Color gamut color gamut | 50% | |
| PPI image point density | 237 | |
| Window effect Window effect | All black | |
| Cover plate surface effect cover plate surface effect | No AF /AG | - |
| Operating TemperatureOperating temperature | -20～70 | ℃ |
| Storage TemperatureStorage temperature | -30～80 | ℃ |
| Weight | TBD | indivual |
