Product parameters
| parameter | Details | unit |
| Display Size(Diagonal)Display size(diagonal) | 1.46 | inch |
| LCD typeLCD display type | α-Si TFT | - |
| Display ModeDisplay Mode | IPS/Transmissive/Normally Black | - |
| Resolution | 172RGBx320 | - |
| Active Area display area | 17.65(H)×32.83(V) | Mother |

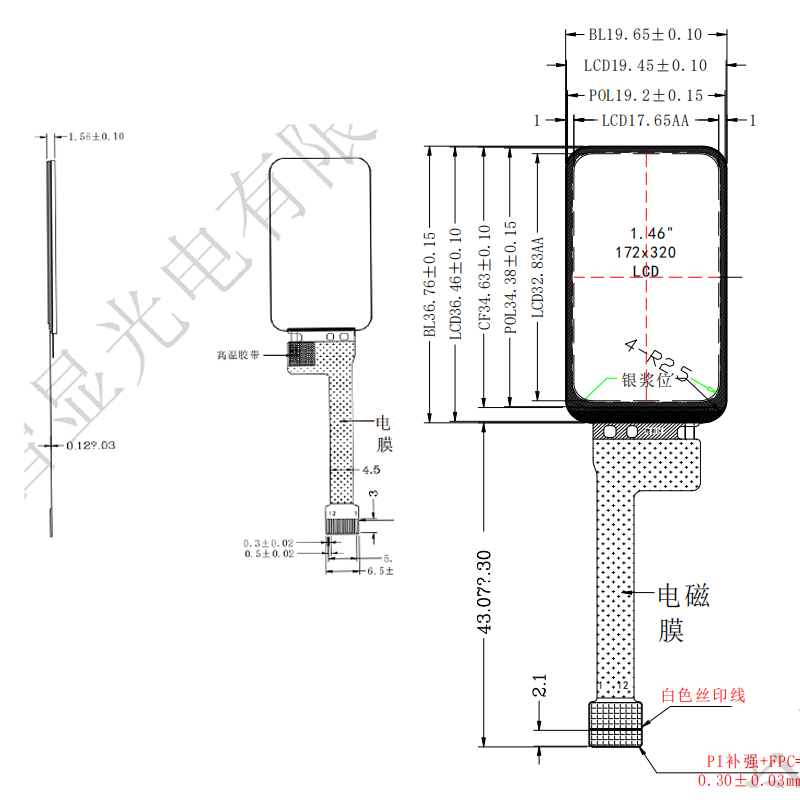

| Module Outline module appearance | 19.65(H)×36.76(V×1.56(T) | Mother |
| Display ColorsDisplay Colors | 262K | - |
| InterfaceInterface | 4-SPI | - |
| Driver ICDriver IC | ST7789 | - |
| TP Viewing Area TP Window | none | Mother |
| TP Outline(assembly)TP outline | none | Mother |
| Luminance on surfaceBrightness | 500 | cd/m² |
| View DirectionView direction | All | Best image |
| Contrast ratioContrast ratio | 1300:1 | |
| Color gamut color gamut | 70% | |
| PPI image point density | 247 | |
| Window effect Window effect | All black | - |
| Cover plate surface effect cover plate surface effect | None A F /AG | - |
| Operating TemperatureOperating temperature | -20～70 | ℃ |
| Storage TemperatureStorage temperature | -30～80 | ℃ |
| Weight | TBD | indivual |
