Product parameters
| parameter | Details | unit |
| Display Size(Diagonal)Display size(diagonal) | 4.1 | inch |
| Display type | AMOLED | - |
| Display ModeDisplay Mode | Transmissive OLED | - |
| Resolution | 568RGBx1232 | - |
| Active Area display area | 43.55(H)×94.47(V) | Mother |

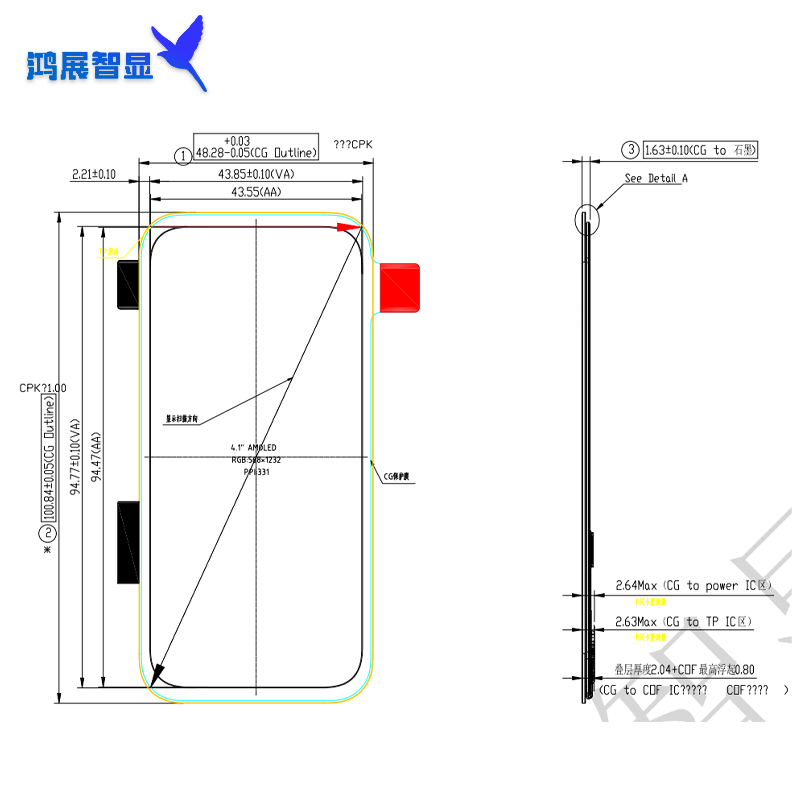

| Module Outline module appearance | 45.6(H)×97.22(V)×0.7(T) | Mother |
| Display ColorsDisplay Colors | 16.7M | - |
| InterfaceInterface | MIPI | - |
| Driver ICDriver IC | RM69A10 | - |
| TPIC | GT9895 | |
| TP Viewing Area TP Window | 43.85(H)×94.77(V) | Mother |
| TPOutline(assembly)TP outline | 48.28(H)×100.84(V)×0.7(T) | Mother |
| Luminance on surfaceBrightness | 300 | cd/m² |
| View DirectionView direction | All | Best image |
| Contrast ratioContrast ratio | 100000:1 | |
| Color gamut color gamut | 100% | |
| PPI image point density | 331 | |
| Window effect Window effect | All black | - |
| Cover plate surface effect cover plate surface effect | No AF/AG | - |
| Operating TemperatureOperating temperature | -20～70 | ℃ |
| Storage TemperatureStorage temperature | -30～80 | ℃ |
| Weight | TBD | indivual |
