Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 2.16 | inch |
| Display type | LTPS-AMOLED | - |
| display mode | Transmissive OLED | - |
| resolution | 480RGB x 480 | - |
| display area | 38.39(H) × 38.39(V) | Mother |

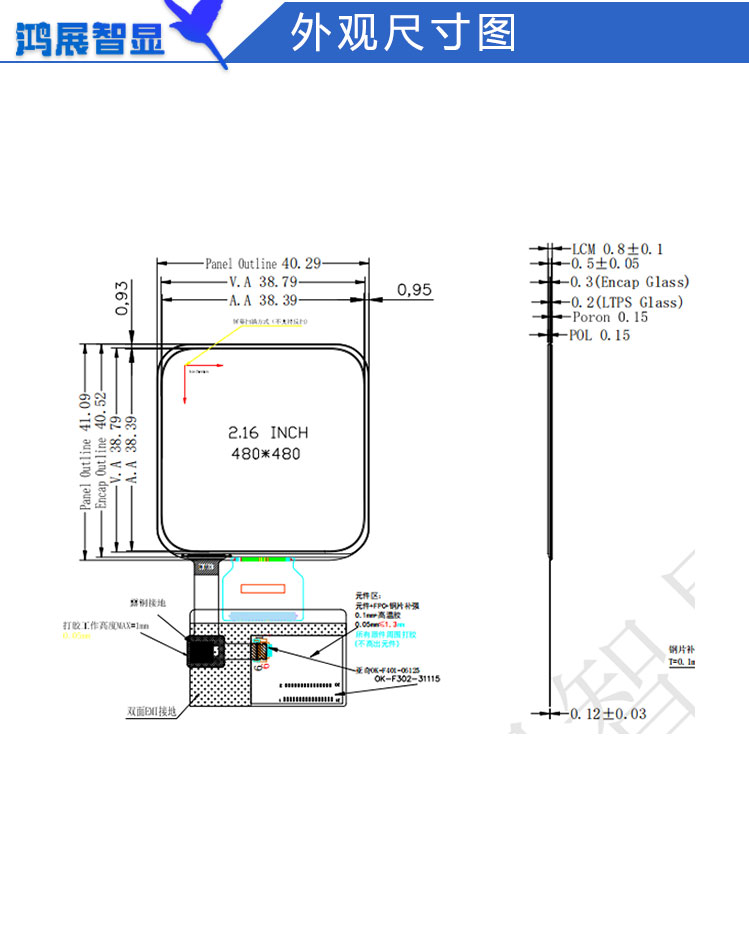

| Module appearance | 40.29(H) × 41.09(V) × 0.8(T) | Mother |
| Display color | 16.7M | - |
| interface | QSPI/MIPI | - |
| Driver IC | CO5300 | - |
| TP window | - | Mother |
| TP shape | - | Mother |
| TP IC | CST9220 | - |
| brightness | 600 | cd/m² |
| Viewing direction | All | - |
| Contrast | 500000:1 | - |
| Color gamut | 108 | % |
| PPI image point density | 314 | - |
| window effect | All black | - |
| cover surface effect | No AF/AG | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | indivual |
