Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 2.04 | inch |
| Display type | LTPS-AMOLED | - |
| display mode | Transmissive OLED | - |
| resolution | 368RGB x 448 | - |
| display area | 32.844(H) × 39.984(V) | Mother |

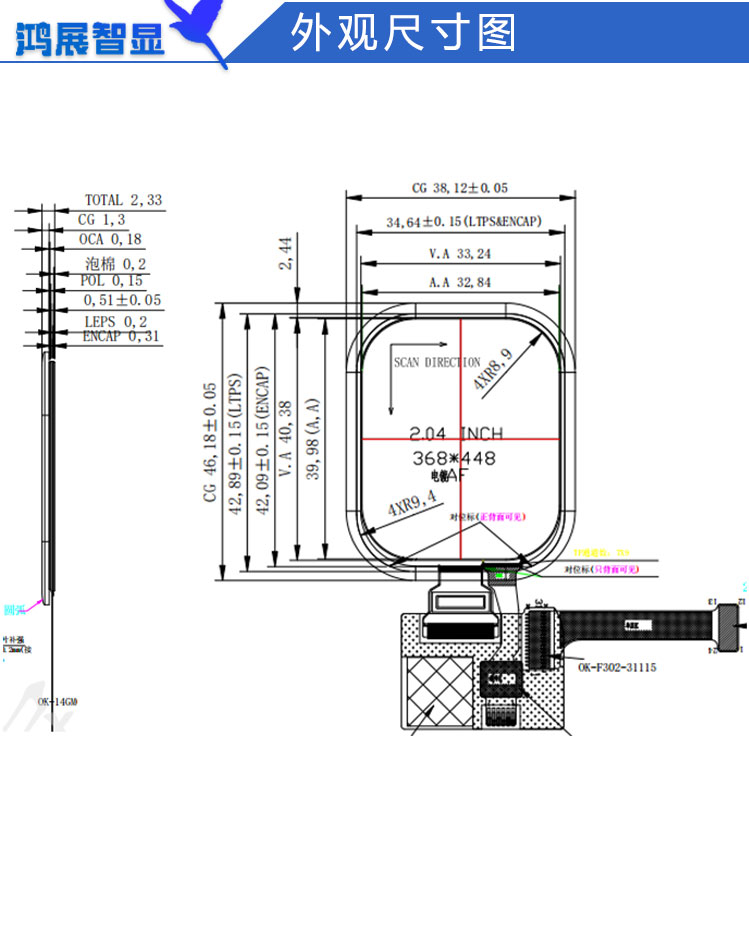

| Module appearance | 34.64(H) × 42.89(V) × 0.85(T) | Mother |
| Display color | 16.7M | - |
| interface | QSPI/MIPI | - |
| Driver IC | CO5300 | - |
| TP window | 33.244(H) × 40.384(V) | Mother |
| TP shape | 38.12(H) × 46.18(V) × 1.30(T) | Mother |
| TP IC | CST820 | - |
| brightness | 800 | cd/m² |
| Viewing direction | All Best images | - |
| Contrast | 30000:1 | - |
| Color gamut | 100 | % |
| PPI image point density | 284 | - |
| window effect | All black | - |
| cover surface effect | Plated AF | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -40~80 | ℃ |
| weight | TBD | g |
Customized display solution
