Product parameters
| Details | parameter | unit |
| Display Size(Diagonal)Display size(diagonal) | 12.6 | inch |
| Display type | AMOLED | - |
| Display ModeDisplay Mode | Display White | - |
| Resolution | 1600RGBx2560 | - |
| Active Area display area | 271.4112(H)×169.632(V) | Mother |

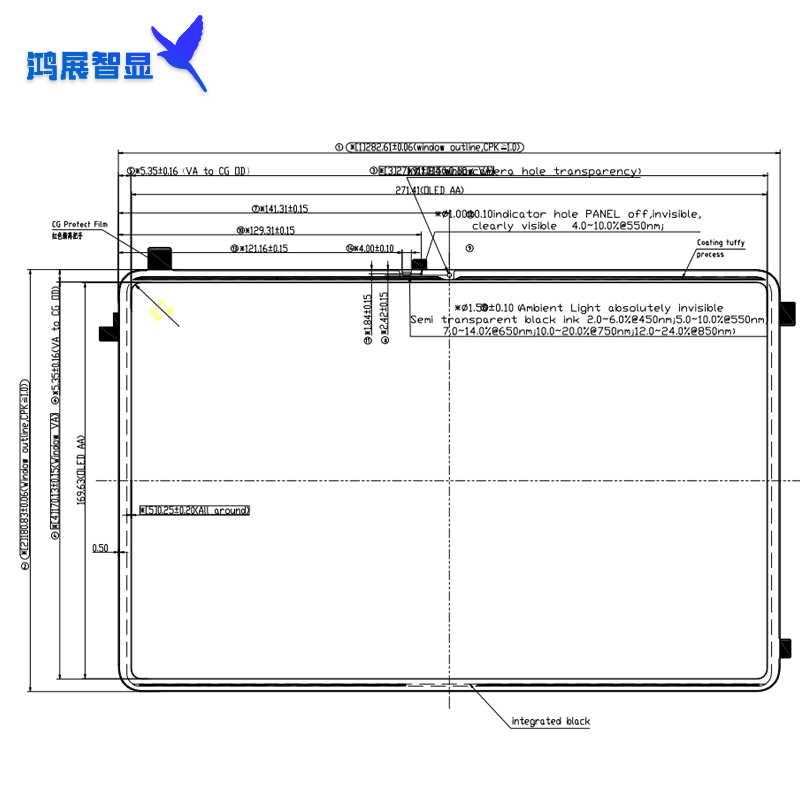

| Module Outline module appearance | 275.411(H)×175.232(V)×0.902(T) | Mother |
| Display ColorsDisplay Colors | 16.7M | - |
| InterfaceInterface | MIPI | - |
| Driver ICDriver IC | Ramadan 0f16 | - |
| TPViewing Area TPViewing Area | 1 | Mother |
| TPOutline(assembly)TP outline | / | Mother |
| TPIC | / | |
| Luminance on surfaceBrightness | 400 | cd/m² |
| View DirectionView direction | All | Best image |
| Contrast ratioContrast ratio | 100000:1 | |
| Color gamut color gamut | 108% | |
| PPI image point density | 239 | |
| Window effect Window effect | All black | - |
| Cover plate surface effect cover plate surface effect | No AF | - |
| Operating TemperatureOperating temperature | -20～70 | ℃ |
| Storage TemperatureStorage temperature | -40～80 | ℃ |
| WeightWeight | TBD | indivual |
