Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 1.75 | inch |
| Display type | AMOLED | - |
| display mode | Transmissive OLED | - |
| resolution | 466RGB x 466 | - |
| display area | Φ43.76 | Mother |

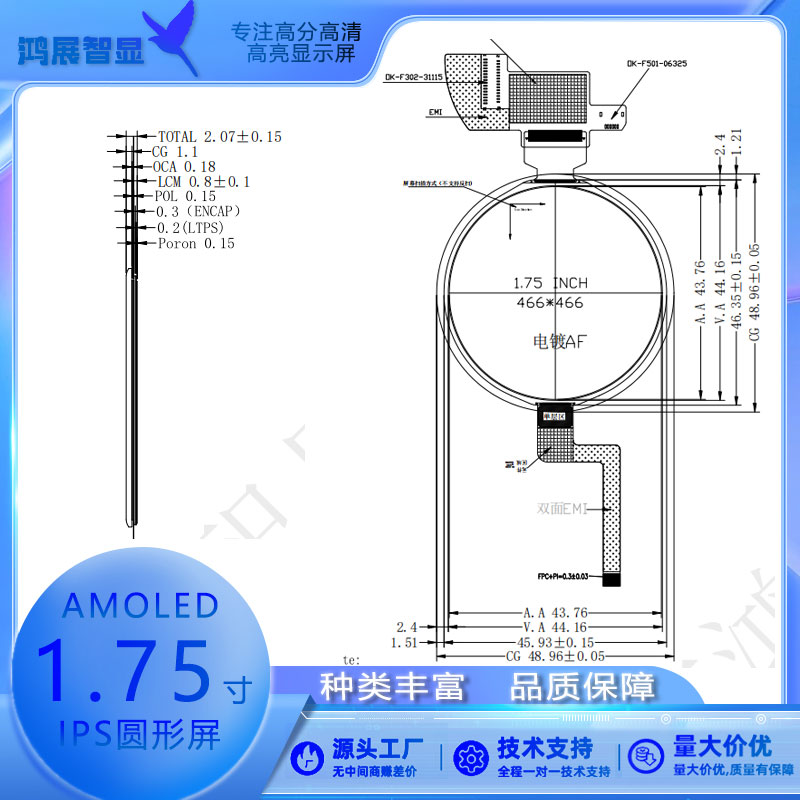

| Module appearance | 45.93(H) × 46.35(V) × 0.8(T) | Mother |
| Display color | 16.7M | - |
| interface | MPI / QSPI | - |
| Driver IC | CO5300 | - |
| TP window | Φ44.16 | Mother |
| TP shape | 48.96(H) × 48.96(V) × 1.1(T) | Mother |
| TP IC | CST820 | - |
| brightness | 700 | cd/m² |
| Viewing direction | All | - |
| Contrast | 100000:1 | - |
| Color gamut | 105 | % |
| PPI image point density | 273 | - |
| window effect | All black | - |
| cover surface effect | AF | - |
| working temperature | -20~70 | ℃ |
| storage temperature | -40 ~ 80 | ℃ |
| weight | TBD | indivual |
