Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 1.58 | inch |
| Display type | LTPS-AMOLED | - |
| display mode | Transmissive OLED | - |
| resolution | 228RGB x 460 | - |
| display area | 17.78(H) × 35.88(V) | Mother |

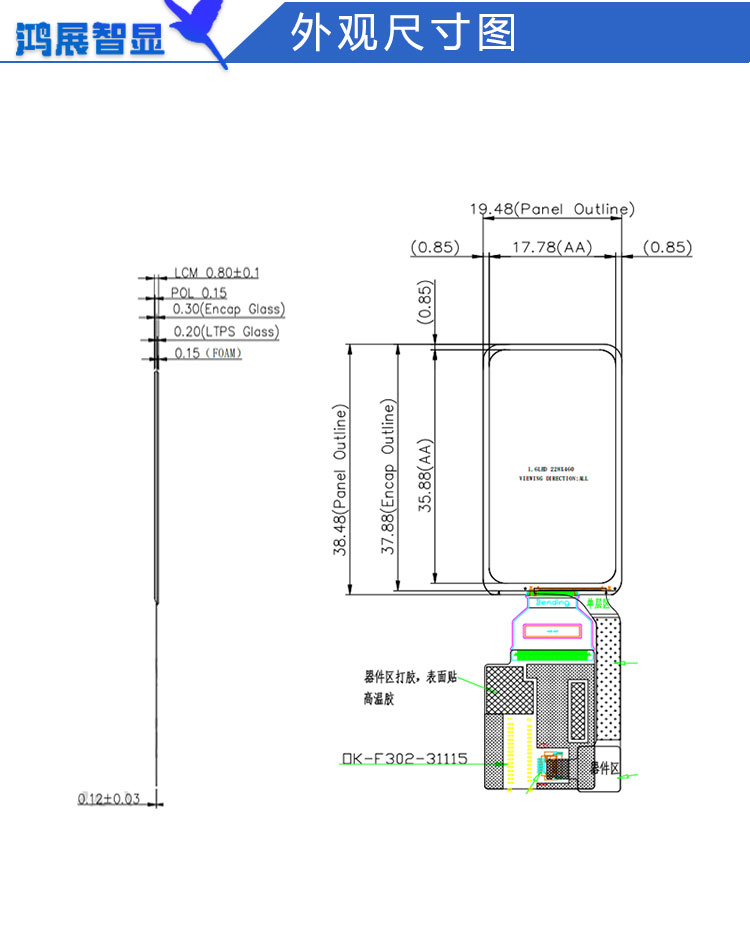

| Module appearance | 19.48(H) × 38.48(V) × 0.8(T) | Mother |
| Display color | 16.7M | - |
| interface | QSPI/MIPI | - |
| Driver IC | CO5300 | - |
| TP window | - | Mother |
| TP shape | - | Mother |
| TP IC | CST820 | - |
| brightness | 700 | cd/m² |
| Viewing direction | All | - |
| Contrast | 100000:1 | - |
| Color gamut | 108 | % |
| PPI image point density | 317 | - |
| window effect | All black | - |
| cover surface effect | No AF/AG | - |
| working temperature | -20 ~ 70 | ℃ |
| storage temperature | -30~80 | ℃ |
| weight | TBD | g |
