Product parameters
| Details | parameter | unit |
| Display Size(Diagonal)Display size(diagonal) | 1.32 | inch |
| Display type | AMOLED | - |
| Display ModeDisplay Mode | Transmissive OLED) | - |
| Resolution | 466RGBx466 | - |
| Active Area display area | Φ33.55 | mm |

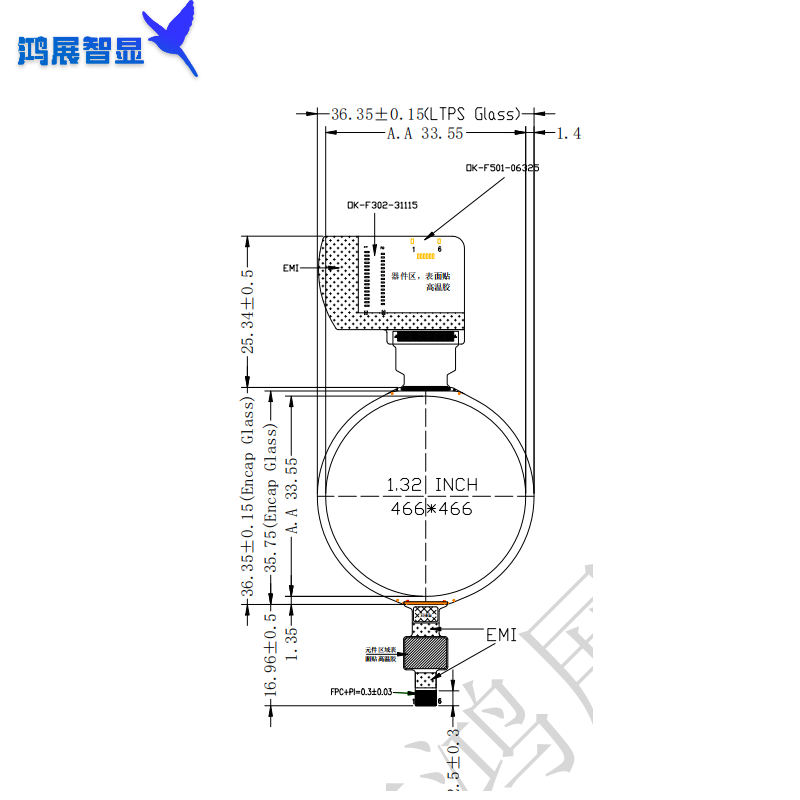

| Module Outline module appearance | 36.35(H)×36.35(V×0.8(T) | mm |
| Display ColorsDisplay Colors | 16.7M | - |
| InterfaceInterface | MIPI/QSPI | - |
| Driver ICDriver IC | CO5300 | - |
| TPViewing Area TPViewing Area | / | mm |
| TPOutline(assembly)TP outline | ① | mm |
| TPIC | CST820 | |
| Luminance on surfaceBrightness | 700 | cd/m² |
| View DirectionView direction | All | Best image |
| Contrast ratioContrast ratio | 100000:1 | |
| Color gamut color gamut | 105% | |
| PPI image point density | 325 | - |
| Window effect Window effect | All black | - |
| Cover plate surface effect cover plate surface effect | No AF/AG | - |
| Operating TemperatureOperating temperature | -20～70 | ℃ |
| Storage TemperatureStorage temperature | -30～80 | ℃ |
| Weight | TBD | indivual |
