Product parameters
| parameter | Details | unit |
| Display size (diagonal) | 1.2 | inch |
| Display type | AMOLED | - |
| display mode | Transmissive OLED | - |
| resolution | 390RGB x 390 | - |
| display area | Φ30.42 | Mother |

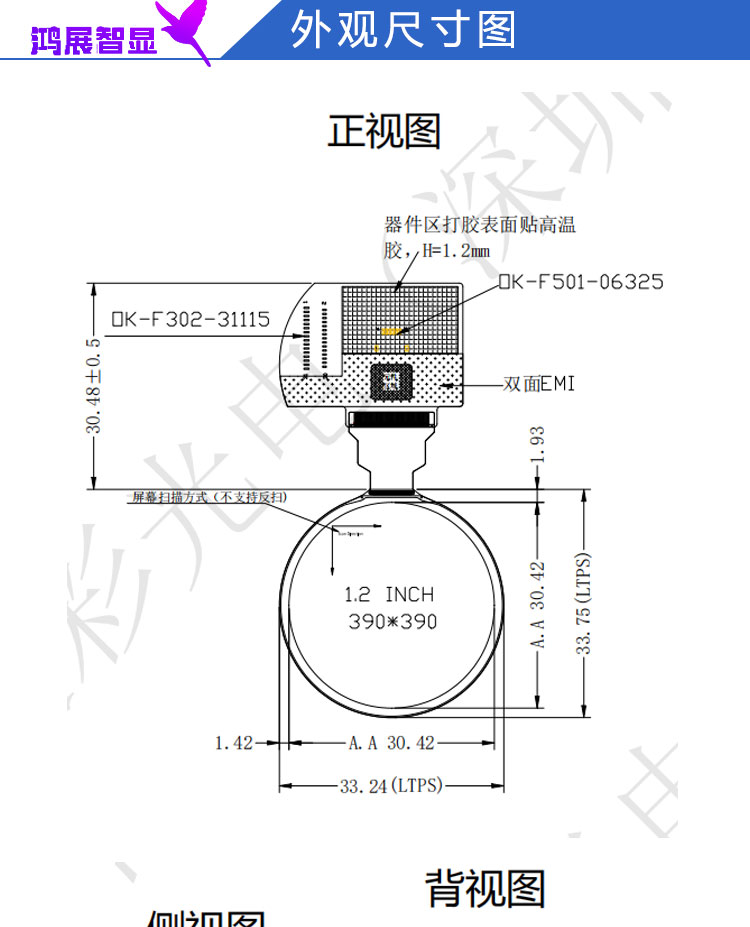

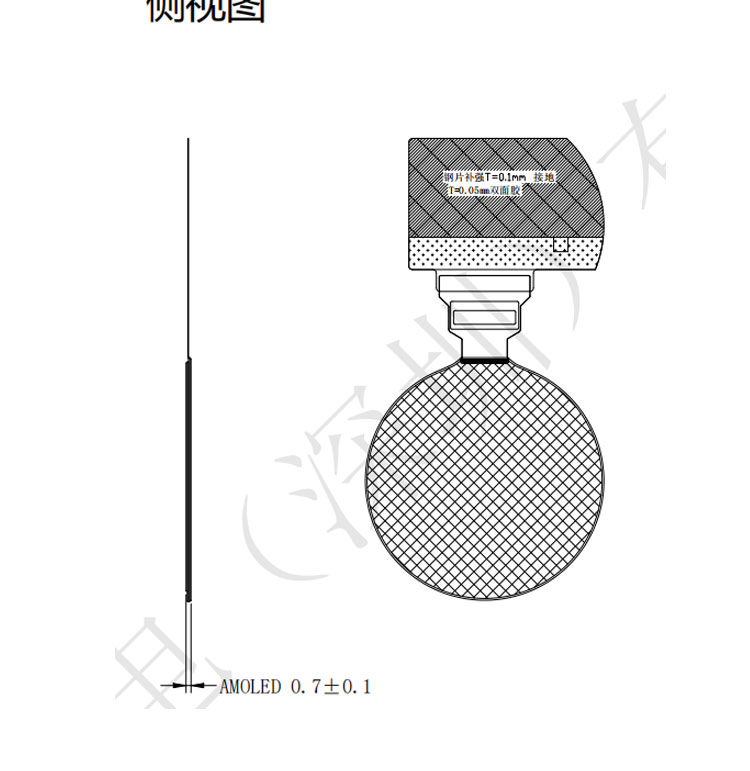

| Module appearance | 33.24(H) x 33.75(V) x 0.7(T) | Mother |
| Display color | 16.7M | - |
| interface | MIPI/QSPI | - |
| Driver IC | CO5300 | - |
| TP window | - | Mother |
| TP shape | - | Mother |
| TP IC | CST816D | - |
| brightness | 700 | cd/m² |
| Viewing direction | All | - |
| Contrast | 100000:1 | - |
| Color gamut | 108 | % |
| PPI image point density | 325 | - |
| window effect | All black | - |
| cover surface effect | No AF/AG | - |
| working temperature | -20~70 | ℃ |
| Storage temperature/humidity | -40~80 | ℃ |
