Product parameters
| parameter | Details | unit |
| Display Size(Diagonal)Display size(diagonal) | 0.95 | inch |
| Display type | AMOLED | - |
| Display ModeDisplay Mode | Transmissive OLED | - |
| Resolution | 120RGBx240 | - |
| Active Area display area | 10.8(H)×21.6(V) | mm |

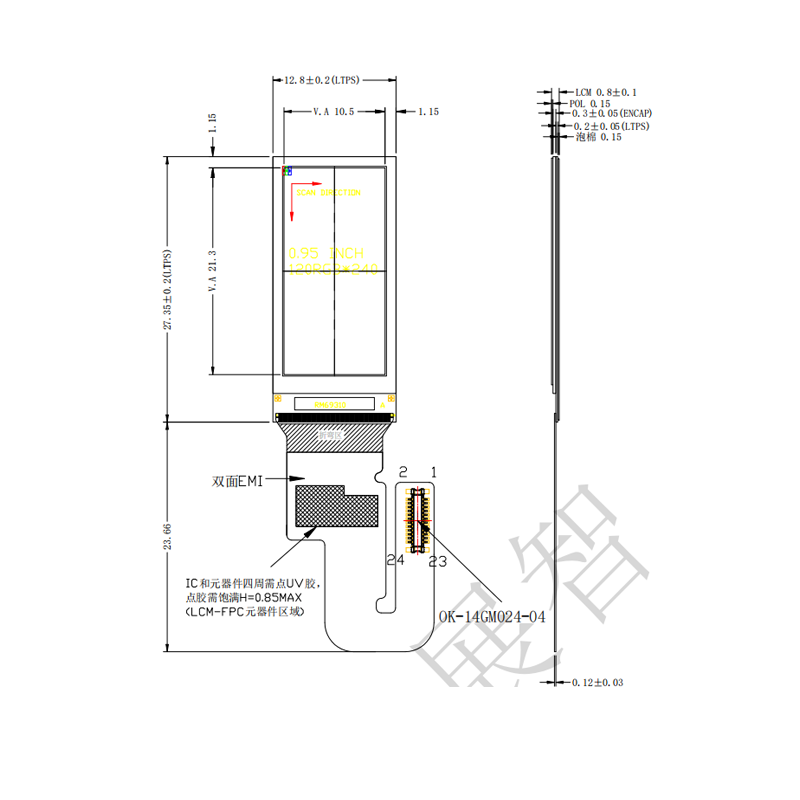

| Module Outline module appearance | 12.8(H)×27.35(V)×1.06(T) | mm |
| Display ColorsDisplay Colors | 16.7M | - |
| InterfaceInterface | SPI | - |
| Driver ICDriver IC | 3306 | - |
| TP Viewing Area TP Window | - | mm |
| TP Outline(assembly)TP outline | - | mm |
| TP IC | - | |
| Luminance on surfaceBrightness | 1000 | cd/m² |
| View DirectionView direction | All | Best image |
| Contrast ratioContrast ratio | 30000:1 | |
| Color gamut color gamut | 100% | |
| PPI image point density | 282 | - |
| Window effect Window effect | All black | - |
| Cover plate surface effect cover plate surface effect | No AF | - |
| Operating TemperatureOperating temperature | -20～70 | ℃ |
| Storage TemperatureStorage temperature | -30～80 | ℃ |
| Weight | TBD | indivual |
